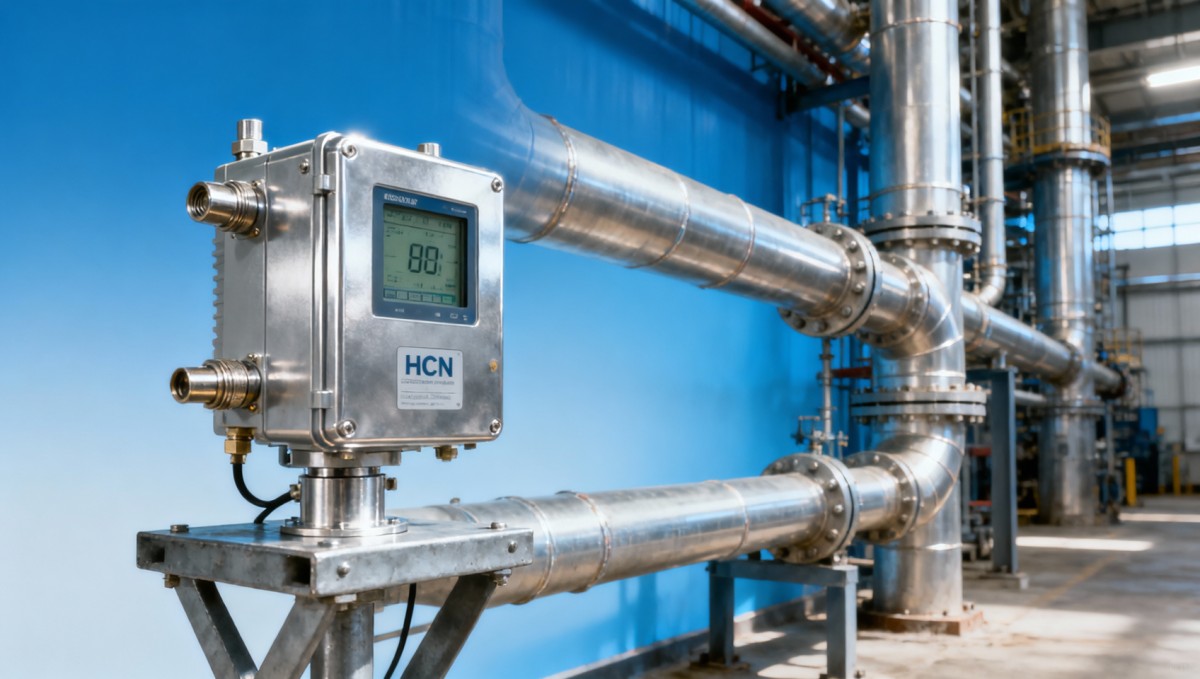

HCN Analyzer Placement: Optimizing Location for Accurate Readings

Accurate placement of HCN analyzers is critical for ensuring reliable gas concentration measurements in industrial and laboratory settings. This guide explores optimal positioning strategies for AsH3, PH3, HF, F2, Cl2, H2S, HCl, SF6, and He concentration analyzers to maximize detection accuracy while addressing common installation challenges. Whether you're a safety manager, procurement specialist, or project engineer, understanding these placement principles will help you achieve precise monitoring results and maintain compliance with industry standards.

Why Analyzer Placement Matters

Proper placement of gas analyzers directly impacts measurement accuracy by 15-30% in typical industrial environments. Incorrect positioning can lead to false readings, delayed alarms, and compromised safety protocols. Three critical factors determine optimal placement:

For HCN detection specifically, placement should account for the gas's 1.2x air density, causing it to accumulate in low-lying areas. Mount analyzers 30-50cm above floor level in potential leak zones.

Gas-Specific Placement Guidelines

Different industrial gases require tailored placement strategies based on their physical properties and detection requirements:

Light Gases (He, H2)

With buoyancy factors of 0.14-0.07 relative to air, position detectors:

• Within 15-30cm of ceiling structures
• Near potential leak points in piping systems
• Avoiding dead air spaces with minimal circulation

Heavy Gases (H2S, HCl)

These gases settle in low areas, requiring:

• Floor-level mounting (20-40cm height)
• Placement in drainage paths or sumps
• Protection from liquid splash damage

Installation Best Practices

Follow these 5-step installation protocols to ensure optimal analyzer performance:

1. Site survey: Map airflow patterns using smoke tests or CFD analysis
2. Risk assessment: Identify high-probability leak zones within 3-5m radius
3. Mounting: Secure with vibration-resistant fixtures at recommended heights
4. Calibration: Perform field calibration with certified test gases
5. Verification: Conduct 48-hour continuous monitoring test

Maintain 2-3m clearance from rotating equipment to prevent vibration interference, and allow 30cm minimum spacing from walls for proper air circulation.

Common Placement Mistakes to Avoid

Industry studies show 40% of analyzer performance issues stem from poor placement. Watch for these critical errors:

1. Dead Air Zones

Areas with less than 0.1m/s airflow can delay detection by 2-4 minutes. Use anemometers to verify adequate air movement.

2. Temperature Extremes

Operating outside the 0-50°C range reduces sensor lifespan by 30-60%. Install thermal barriers if needed.

3. Access Obstructions

Maintenance clearance of at least 60cm on all sides should be maintained for calibration and servicing.

Implementation Checklist

Use this field-tested checklist when deploying gas analyzers:

• Verify compliance with OSHA 1910.119 or equivalent standards
• Confirm power supply stability (±5% voltage tolerance)
• Test communication with control systems (4-20mA/HART/Modbus)
• Document all placement coordinates for future audits
• Schedule quarterly performance validation tests

For facilities handling multiple gas types, consider staggered vertical placement at 0.5m, 1.5m, and ceiling levels to ensure comprehensive coverage.

Conclusion and Next Steps

Optimal HCN analyzer placement combines scientific principles with practical field considerations. By following gas-specific guidelines and avoiding common installation errors, facilities can achieve 95-99% detection reliability. For complex environments, consult with certified industrial hygienists to develop customized monitoring plans.

Contact our instrumentation specialists for a free site assessment and analyzer placement recommendation tailored to your specific gas monitoring requirements.
