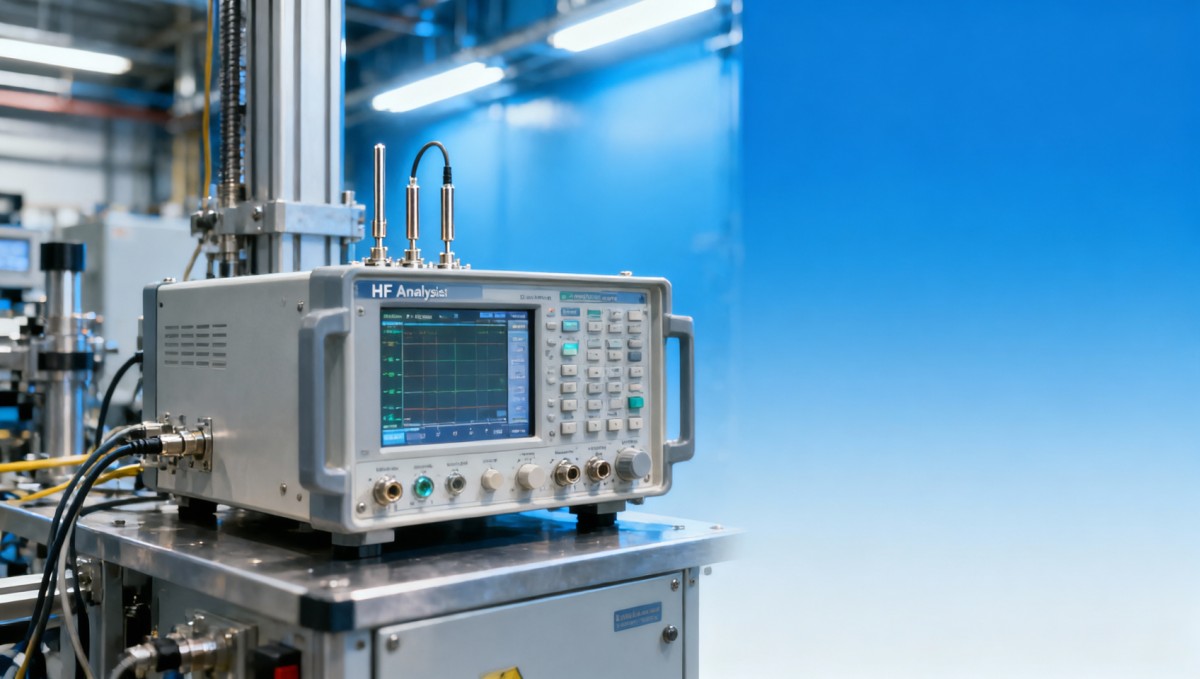

Understanding HF Analyzer Cross-Sensitivity

Hydrogen fluoride (HF) analyzers are critical for detecting toxic gas concentrations in industrial processes, environmental monitoring, and laboratory applications. However, cross-sensitivity interference from other gases like SO2, NO2, or water vapor can distort readings by 15-30%, compromising safety and compliance. This section explains the science behind interference mechanisms and their operational impact.

Electrochemical sensors in HF analyzers typically respond to target gases within 0.1-20 ppm ranges, but competing redox reactions with interferents create false positives. For instance, chlorine (Cl2) exposure may generate up to 25% higher HF readings due to similar oxidation potentials at the working electrode.

The table demonstrates how common industrial gases affect HF measurement accuracy. Facilities handling semiconductor etching chemicals or petroleum refining byproducts face particular challenges, as process streams often contain multiple interferents simultaneously.

Key Interference Pathways

Three primary interference mechanisms impact HF analyzers:

• Electrochemical overlap: Gases with similar redox potentials (e.g., H2S at -0.14V vs HF at -0.25V) trigger sensor responses
• Chemical conversion: Acidic gases like HCl may form HF through reactions with moisture or sensor components
• Sensor poisoning: Siloxanes or heavy metals permanently reduce sensitivity by 40-60% over 3-6 months

Technical Solutions for Interference Mitigation

Modern HF analyzers incorporate multiple engineering approaches to maintain accuracy in contaminated environments. These solutions balance detection specificity with operational practicality across different industry applications.

Advanced Sensor Technologies

Leading manufacturers employ three interference-reduction techniques:

1. Multi-electrode arrays: Separate sensing and compensation electrodes reduce cross-sensitivity by 70-85% compared to single-cell designs
2. Selective membranes: PTFE filters block 90% of particulate interferents while allowing HF diffusion
3. Temperature compensation: Integrated thermistors correct for humidity-induced errors (±2% accuracy from 10-90% RH)

This comparison helps procurement teams evaluate cost/performance tradeoffs. For example, semiconductor fabs typically opt for IR-based systems despite higher costs, while wastewater plants may choose compensated electrochemical sensors for budget-conscious compliance.

Operational Best Practices

Beyond hardware selection, proper installation and maintenance significantly reduce cross-sensitivity issues. These protocols apply across oil & gas, chemical processing, and laboratory environments.

Installation Guidelines

Five critical installation factors influence interference levels:

• Sampling location: Position analyzers 3-5 meters downstream from known interferent sources
• Flow rate: Maintain 0.5-1.5 L/min sample flow to prevent stratification
• Temperature: Keep within 15-30°C operating range to minimize humidity effects
• Orientation: Mount sensors vertically to prevent liquid accumulation
• Purge cycles: Implement 2-3 minute nitrogen purges every 4 hours in high-contaminant areas

Maintenance Protocol

A structured maintenance schedule preserves accuracy:

1. Daily: Verify zero-point calibration with certified HF-free air
2. Weekly: Inspect filters and membranes for particulate buildup
3. Monthly: Perform span calibration using 5 ppm HF reference gas
4. Quarterly: Replace electrochemical sensors in high-interference environments
5. Annually: Factory recalibration for optical-based systems

Industry-Specific Implementation

Different sectors require tailored approaches to HF analyzer interference management based on their unique gas mixtures and regulatory requirements.

Semiconductor Manufacturing

Wafer fabrication facilities using HF for etching face extreme sensitivity requirements (0.1 ppm detection). Recommended solutions include:

• FTIR analyzers with 0.05 ppm detection limits
• Isokinetic sampling systems to prevent gas stratification
• Dedicated exhaust stream monitoring away from NH3 and HCl sources

Oil Refining Applications

Alkylation units monitoring HF concentrations must address hydrocarbon interference:

• Heated sample lines (60-80°C) to prevent condensation
• Ceramic filters for removing catalyst fines
• Automated background subtraction algorithms for SO2 compensation

Conclusion and Next Steps

Effective HF analyzer operation requires understanding cross-sensitivity mechanisms, selecting appropriate technologies, and implementing rigorous maintenance. By combining advanced sensor designs with proper installation practices, facilities can achieve reliable measurements even in challenging environments.

For procurement teams evaluating HF analyzers, prioritize solutions offering:

• Documented interference compensation performance data
• Industry-specific validation testing
• Clear maintenance requirements and support packages

Contact our instrumentation specialists for a customized assessment of your HF monitoring needs, including interference risk analysis and technology recommendations tailored to your operational environment.
