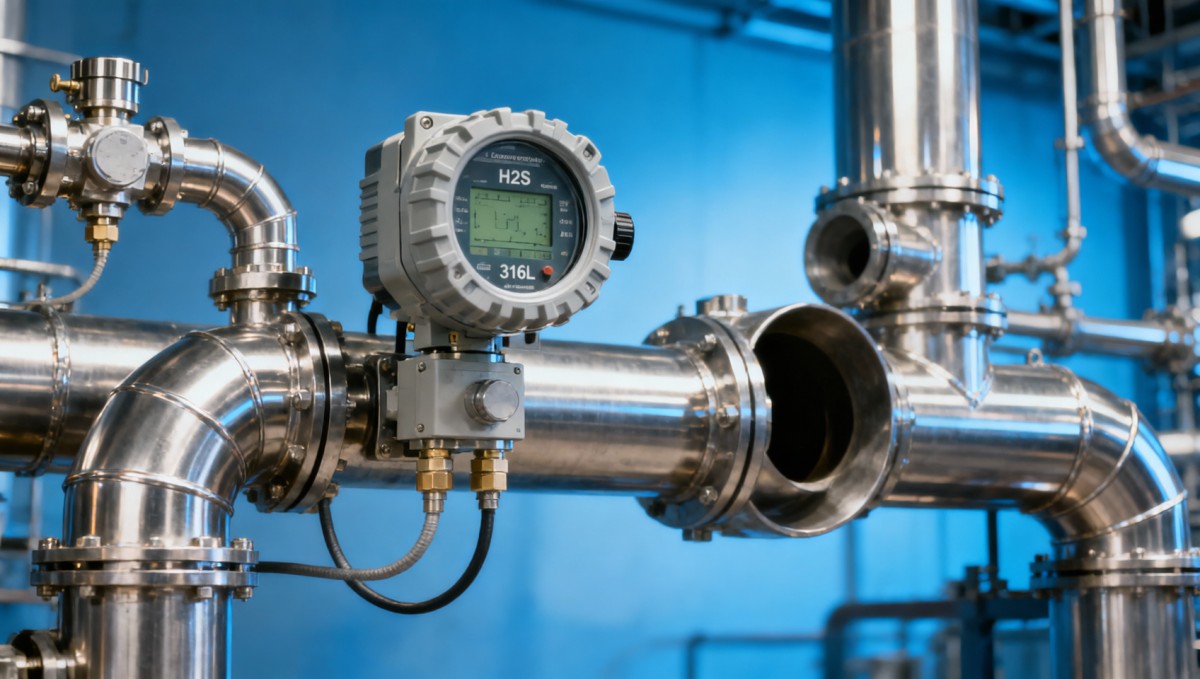

Why Proper Ventilation is Critical for H2S Analyzer Installation

Hydrogen sulfide (H2S) concentration analyzers serve as frontline defense systems in oil refineries, wastewater treatment plants, and chemical processing facilities. These environments often contain companion gases like chlorine (Cl2), hydrogen chloride (HCl), and sulfur hexafluoride (SF6) that require simultaneous monitoring. Strategic ventilation planning directly impacts three key performance metrics: measurement accuracy (±0.5% FS), sensor lifespan (typically 3-5 years), and calibration frequency (every 30-90 days).

The American Conference of Governmental Industrial Hygienists (ACGIH) recommends maintaining airflow velocities between 0.3-0.5 m/s near analyzer sampling points. This range prevents gas stratification while avoiding turbulent interference with electrochemical sensors. Facilities handling arsenic hydride (AsH3) or phosphine (PH3) require even stricter controls due to these gases' lower exposure limits (50 ppb for AsH3 vs. 10 ppm for H2S).

Key Ventilation Parameters for Toxic Gas Monitoring

This table highlights critical design factors that affect both safety compliance and measurement reliability. Note that hydrogen cyanide (HCN) monitoring requires additional considerations due to its rapid diffusion characteristics (2.7x faster than H2S).

Optimizing Analyzer Placement for Mixed Gas Environments

Multi-gas facilities present unique challenges where H2S analyzers must coexist with detectors for hydrofluoric acid (HF), ammonia (NH3), and other compounds. The "Rule of 3D" governs optimal placement:

• Distance: Maintain 3-5m spacing between different gas detectors
• Direction: Orient sampling inlets perpendicular to dominant airflow
• Dynamics: Account for seasonal wind patterns and process variations

For confined spaces like storage tank farms, computational fluid dynamics (CFD) modeling can predict gas dispersion patterns with 85-92% accuracy. This prevents "dead zones" where H2S might accumulate beyond the analyzer's 0.1-50 ppm detection range.

Ventilation System Compatibility Checklist

These specifications ensure compatibility with H2S analyzer systems while accommodating potential exposure to secondary contaminants like sulfur dioxide (SO2) or nitrogen oxides (NOx).

Maintenance Protocols for Ventilation-Assisted Monitoring

Regular maintenance preserves both ventilation efficiency and analyzer accuracy. A tiered approach works best:

1. Daily: Visual inspection of intake filters (replace at 0.5" H2O pressure drop)
2. Weekly: Airflow verification using calibrated anemometers (±5% of design CFM)
3. Quarterly: Duct integrity checks with smoke testing (max 5% leakage)
4. Annual: Full system performance validation per NFPA 45 standards

For facilities handling hydrogen fluoride (HF), monthly inspections become mandatory due to the gas's extreme corrosivity (attacks glass at 1 ppm concentrations).

Common Installation Mistakes and Corrections

Field data reveals recurring issues in H2S analyzer ventilation setups:

• Mistake: Placing analyzers near HVAC returns (causes 40-60% false readings)
• Solution: Maintain 10-foot clearance from air handling units
• Mistake: Using standard PVC ducting (degrades in 6-12 months with H2S)
• Solution: Upgrade to CPVC or fiberglass-reinforced plastic

FAQs: H2S Analyzer Ventilation Considerations

How often should ventilation systems be tested with gas analyzers in place?

Comprehensive performance testing should occur biannually, with tracer gas studies using sulfur hexafluoride (SF6) at 0.1% concentration. This verifies complete air exchange within the 15-minute evacuation time required by most safety protocols.

What's the maximum distance between an H2S source and analyzer intake?

For optimal response time (under 30 seconds), keep sampling lines under 25 feet with 1/4" OD tubing. Longer runs require proportional flow increases (minimum 1 LPM) to prevent lag times exceeding OSHA's 60-second alarm threshold.

Can existing ventilation systems be retrofitted for H2S monitoring?

Retrofits are possible but require: 1) corrosion-resistant coating application (2-3 mil thickness), 2) airflow balancing (±10% of design specs), and 3) addition of explosion-proof dampers for facilities handling gases with LEL below 1%.

Conclusion and Next Steps

Proper H2S analyzer installation demands integrated ventilation design that addresses both safety requirements (OSHA 1910.1200) and measurement accuracy (EPA 40 CFR Part 60). Facilities handling multiple hazardous gases should prioritize zoned ventilation with dedicated exhaust paths for each contaminant class.

For customized ventilation analysis tailored to your specific gas monitoring needs, contact our certified industrial hygiene team. We provide CFD modeling, compliance audits, and turnkey analyzer installation services meeting API RP 555 and ISA 12.13.01 standards.
